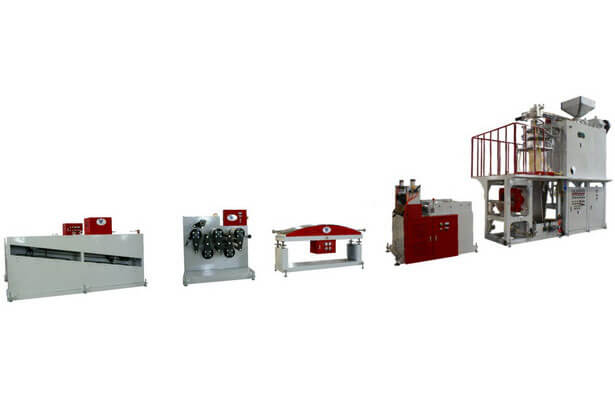

Light Packing Tape Making Machine

Light Packing Tape Making Machine
Product Name:Light Packing Tape Making Machine
Model:SE/PT-55
Detail Specifications:

When working the screen changer, the machine doesn’t stop and keep working.

The film can be increased strongly and transparently, when it passes through the hot water bath and the heating blower.

The film bag is easy to slit in the auxiliary take-off unit with slitting device.

After the film bags become the strips; it is strong and tenacious after heated and stretched by heating bridge.

The strips are easy to disassemble from the winding unit.

We are the professional manufacturer and experience supplier for light packing tape making plant.

Model SE/PT-55
Material PP
OUTPUT 30-50 KG/HR
EXTRUDER SINGLE
DRIVE MOTOR 30 HP × 6P + INVERTER
SPEED RANGE STEPLESS
SCREW DIAMETER 55 MM
L/D RATIO 30/0
HEAT CAPACITY 12.0 KW
TEMP. CONTROL 6 ZONES
DIE TYPE : DOWNWARD TYPE
HYDRAULIC SCREEN CHANGE : 3 HP
DIAMETER : ψ200 MM
COOLING UNIT AIR BLOWER : 1/2 HP
AIR RING : ALUM. CASTING
TAKE-OFF UNIT WIDTH OF ROLLER : 600 MM
DRIVE MOTOR : 1 HP + INVERTER
SLITTING UNIT SLITTING KNIFE : 6 PCS.
WIDTH OF ROLLER : 600 MM
REHEATING UNIT STAINLESS STEEL PLATE : 2000×500 MM
TEMPERATURE CONTROL : 2 ZONES
HEATING CAPACITY : 9 KW
STRETCHING UNIT WIDTH OF ROLLER : 500 MM
DRIVE MOTOR : 5 HP + INVERTER
WINDING UNIT WINDING ROLLER : (8+8)ROLLERS
DRIVE MOTOR : 2 HP + INVERTER
GUIDING ROLLER : 1 HP + INVERTER
FLOOR DIAMENSION 13 × 2.6× 3.8 M
MACHINE WEIGHT 5000KGW
