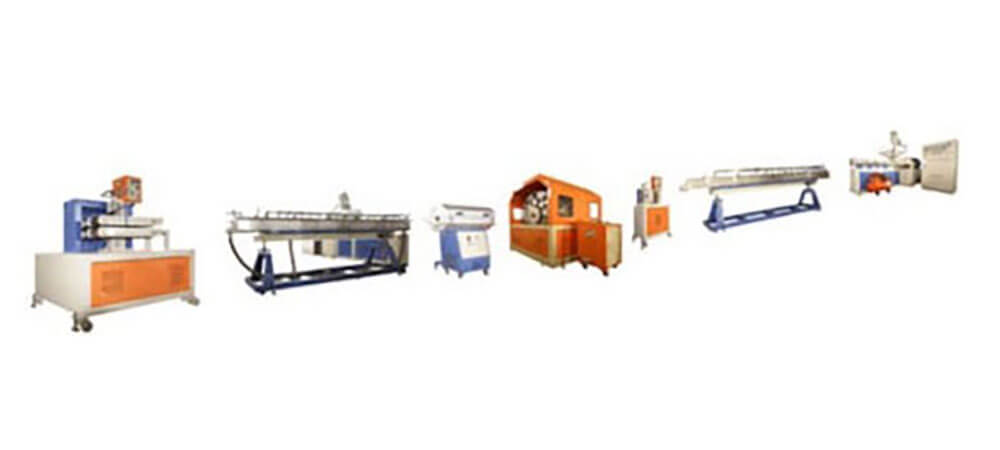

Yarn Braiding PVC Hose Making Machine

Yarn Braiding PVC Hose Making Machine
Product Name:Yarn Braiding PVC Hose Making Machine
Model:Yarn Braiding PVC Hose Making Machine (SE/YBSP-75-65)
Detail Specifications:

We are the professional manufacturer and experience supplier for yarn braiding PVC hose making plant and PP straw making plant.

TITLE 75/ 65 MM HIGH PRESSURE YARN BRAIDING SOFT PVC HOSE MAKING MACHINE
MODEL SE/YBSP-75-65
MATERIAL PVC
OUTPUT 60 KG/HR
EXTRUDER DOUBLE TYPE
DRIVE MOTOR 40 HP+ INVERTER(For inside) /30 HP + INVERTER(For outside)
SPEED RANGE STEPLESS
SCREW DIAMETER 75 MM 1 SET 65 MM 1 SET
L/D RATIO 24
TEMP. CONTROL 9 ZONES
HOSE FORMED DIE SPECIFICATION ψ1-1/4", ψ1-1/2", ψ2"
COOLING UNIT WATER TANK DIMENSION L 4500×W 250× H 200
MATERIAL SUS 304#
ADJUSTING WHEEL 12 PIECES
WHEEL TAKE-OFF UNIT TAKE-OFF MOTOR 2 HP AC MOTOR + INVERTER
WHEEL DIMENSION φ 125 × 150 × 4 psc.
4 wheel drive (4WD) & Clipped adjusting wheel by manual
SK-36H YARN BRIADING MACHINE Drive Motor 20 HP motor+INVERTER
Speed 500 RPM
Dimension 2650 × 2650 × 1800
Material A6061 #
Yarn Base 6 H 1/2" ~ 1" yarn disk
Yarn 1000 pcs. / 4 KG
BELT TAKE-OFF UNIT TAKE-OFF MOTOR 3 HP AC MOTOR + INVERTER
WHEEL DIMENSION 800 (L)× 100(W)
4 wheel drive (4WD) & Clipped adjusting wheel by manual
FIXED WINDER POWER MOTOR 1/2 HP DC MOTOR
REEL SIZE INSIDE DIAMETER ψ180-200
OUTSIDE DIAMETER ψ620
DIMENSION L 800×W 500× H 1050
MATERIAL S50C (MEDIUM CARBON STEEL)
MACHINE WEIGHT 5000 KG

OPTION EQUIPMENT : INKJET PRINTER, HEATING BLOWER & BELLOW
