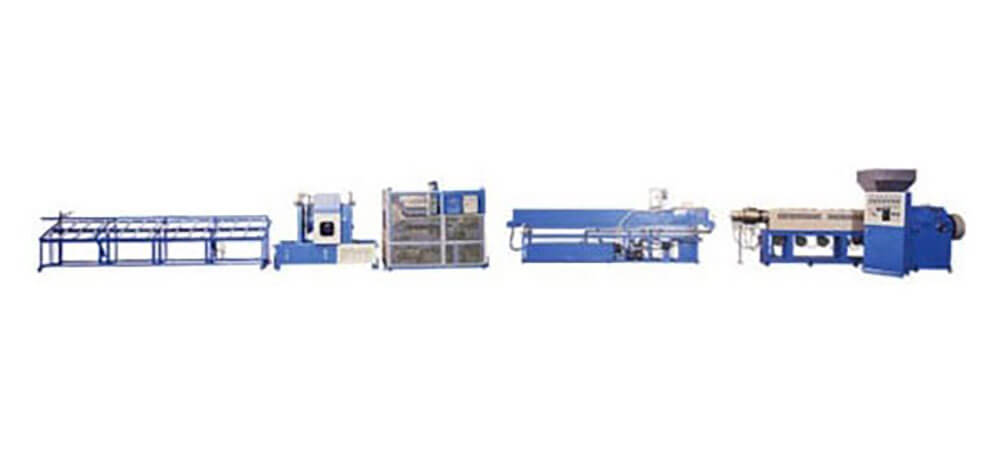

Pipe Making Machine (SE/RP-120)
- We are the professional manufacturer and experience supplier for PVC pipe making plant and PVC profile making plant.
| Model | SE/RP-45 | SE/RP-55 | SE/RP-65 | SE/RP-85 | SE/RP-100 | SE/RP-120 |
| Output (max.) | 30kg/hr | 45kg/hr | 70kg/hr | 100kg/hr | 130kg/hr | 180kg/hr |
| Product Diameter | 3/8" - 3/4" | 3/8" - 1 1/4" | 1" - 2" | 2" - 4" | 4" - 5" | 5" - 6" |
| Extruder | ||||||
| Screw Diameter | 45mm | 55mm | 65mm | 85mm | 100mm | 120mm |
| L:D ratio | 24:1 | 24:1 | 24:1 | 24:1 | 24:1 | 24:1 |
| Barrel cooling | 3 zoness | 3 zones | 3 zones | 4 zones | 4 zones | 5 zones |
| Drive motor | 15 hp | 20 hp | 25 hp | 40 hp | 60 hp | 75 hp |
| Heating capacity | 8 kW | 12 kW | 16 kW | 22 kW | 35 kW | 43 kW |
| Auto thermo control | 5 zones | 5 zones | 6 zones | 6 zones | 7 zones | 8 zones |
| Die Diameter | 3/8" - 3/4" | 3/8" - 1 1/4" | 1" - 2" | 2" - 4" | 4" - 5" | 5" - 6" |
| Vacuum sizing unit | ||||||
| Vacuum pump | 3 hp | 3 hp | 3 hp | 5 hp | 5 hp | 7 1/2 hp |
| Water recycling pump | 1/2 hp | 1/2 hp | 1/2 hp | 1/2 hp | 1/2 hp | 1/2 hp |
| Take off unit caterpillar type | ||||||
| DC Drive motor | 2 hp | 2 hp | 2 hp | 3 hp | 5 hp | 5 hp |
| Auto cutting unit (include stacker) | ||||||
| Drive motor | 1/2 hp | 1 hp | 1 hp | 2 hp | 3 hp | 3 hp |
| Dimension (m) | 12x 1x1.7 | 13.4x 1.8x1.7 | 15x 1.8x1.8 | 17x 1.9x1.8 | 20x 2.1x1.8 | 22x 2.4x1.8 |
| Machine weight | 2000 kg | 2500 kg | 3000 kg | 4200 kg | 5600 kg | 7000 kg |
| Required power | 24 kW | 32 kW | 39 kW | 60 kW | 82 kW | 110 kW |
