Pelletizing Line-S type

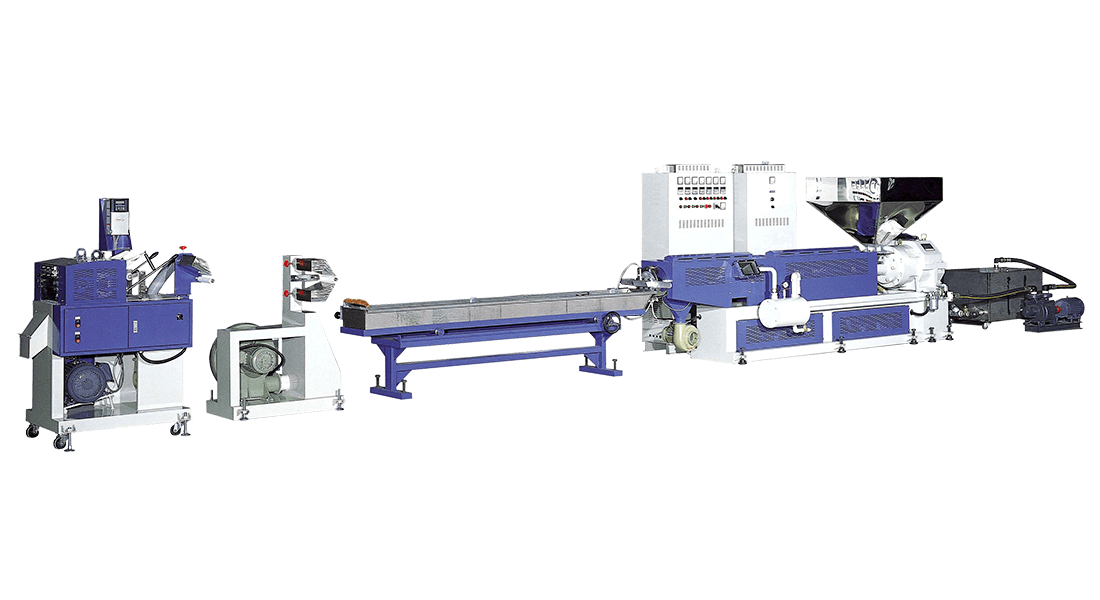

Single Type Plastic Waste Pelletizing Machine
SE/WR-100S
- To reduce the source waste.
- Keep the environment clean, and reduce to be broken the environment secondly.
- We are the professional manufacturer and experience supplier for Waste recycling making machine.
- This model is for recycling various materials and dyeing.
- It has optional vacuum vent tank with waste water disposal tank which can take the gas, or ink off prompt and dehydrate thoroughly to have cleaner pellets.
- The waste water disposal tank can make products cleaner and will not pollute the air.
- The optional dehumidifying unit can make the pellets dryer.
| Model | SE/WR-85S | SE/WR-100S | SE/WR-120S | SE/WR-150S |
| Material | PS/PC/ABS/475 SCRAP | PS/PC/ABS/475 SCRAP | PS/PC/ABS/475 SCRAP | PS/PC/ABS/475 SCRAP |
| OUTPUT | 200-250 KG/HR | 250-300 KG/HR | 300-400 KG/HR | 400-550 KG/HR |
| EXTRUDER | SINGLE | SINGLE | SINGLE | SINGLE |
| DRIVE MOTOR | 50 HP+INVERTER | 75 HP+INVERTER | 125 HP+INVERTER | 175 HP+INVERTER |
| SPEED RANGE | STEPLESS | STEPLESS | STEPLESS | STEPLESS |
| SCREW DIAMETER | 85MM | 100 MM | 120 MM | 150 MM |
| L/D RATIO | 32 | 32 | 32 | 32 |
| HEAT CAPACITY | 30 KW | 45 KW | 60 KW | 90 KW |
| TEMP. CONTROL | 6 ZONEs | 7ZONEs | 8 ZONEs | 9 ZONEs |
| VENT EQUIPMENT | 1 SET | 1 SET | 1 SET | 1 SET |
| DIE | MANUAL SCREEN CHANGE | |||
| COOLING UNIT | WATER BATH (STAINLESS STEEL) | |||
| CUTTING UNIT | 5 HP+INVERTER | 5 HP+INVERTER | 7 1/2 HP+INVERTER | 10 HP+INVERTER |
| FORCE FEEDING HOPPER | 5HP+INVERTER | 5HP+INVERTER | 5HP+INVERTER | 5HP+INVERTER |
| FLOOR DIAMENSION | 8.8×2.1×2.3 M | 9.8×2.2×2.35 M | 10.8×2.3×2.35 M | 15.0×2.5×2.8 M |
| MACHINE WEIGHT | 3400KGS | 4500 KGS | 6000 KGS | 8000 KGS |
