PVC Profile Making lLine

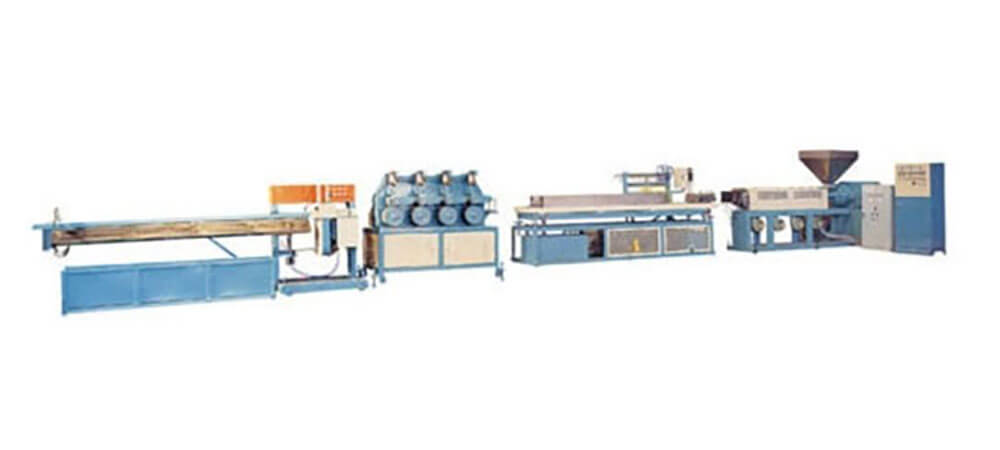

PVC Profile Extrusion
PF-100
- We are the professional manufacturer and experience supplier for PVC PROFILE making machine.
| MODEL | SE/PF-45 | SE/PF-55 | SE/PF-65 | SE/PF-85 | SE/PF-100 | SE/PF-120 |
| Output(max/hr) | 25kg | 40kg | 60kg | 80kg | 120kg | 160kg |
| Extruder | ||||||
| Screw diameter | 45mm | 55mm | 65mm | 85mm | 100mm | 120mm |
| L:D ratio | 24:1 | 24:1 | 24:1 | 24:1 | 24:1 | 24:1 |
| Barrel cooling | 3 zones | 3 zones | 3 zones | 4 zones | 4 zones | 5 zones |
| Drive motor | 15 hp | 20 hp | 25 hp. | 40 hp | 60 hp | 75 hp |
| Heating capacity | 8 kW | 12 kW | 16 kW | 22 kW | 35 kW | 43 kW |
| Auto thermo control | 5 zones | 5 zones | 6 zones | 6 zones | 7 zones | 8 zones |
