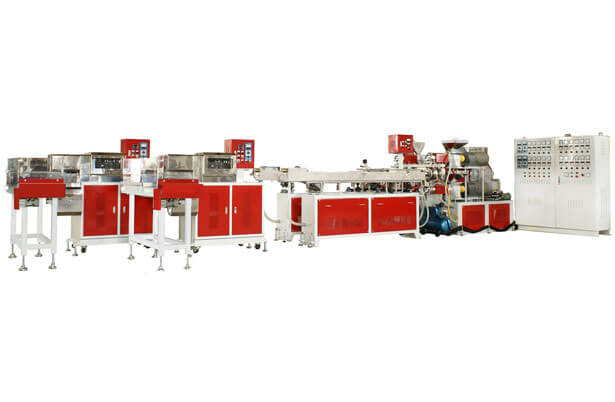

PP Drinking Straw Making Machine

PP Drinking Straw Making Machine
Product Name:PP Drinking Straw Making Machine
Model:SE/CS-45TD
Detail Specifications:

This machine could make two product line in the same time.

This machine is easy to operate and produce.

It equips the vacuum water tank for cooling the PP straw and forming circularly.

It can be adjusted the cutting speed to get the length of straw which you need.

TITLE 45mm 3 COLORS DOUBLE HEAD PP DRINKING STRAW MAKING
MODEL SE/CS-45TD
MATERIAL PP RESIN & MATER BATCH
OUTPUT 500 KG/MIN
EXTRUDER MAIN EXTRUDER VICE EXTRUDER (FOR INFUSION COLOR)
DRIVE MOTOR 1 SET 4 SETS
30 HP + INVERTER 2 HP DC
SCREW DIAMETER 45 MM 26 MM
L/D RATIO 26 16
TEMP. CONTROL 22 ZONES
FORMED DIE 2 SETS
COOLING UNIT VACUUM WATER TANK 2 SETS
1/2 HP VACUUM PUMP
TAKE-OFF UNIT & CUTTING UNIT TYPE BELT TYPE
MOTOR 2 HP DC
MACHINE WEIGHT 2600 KG
