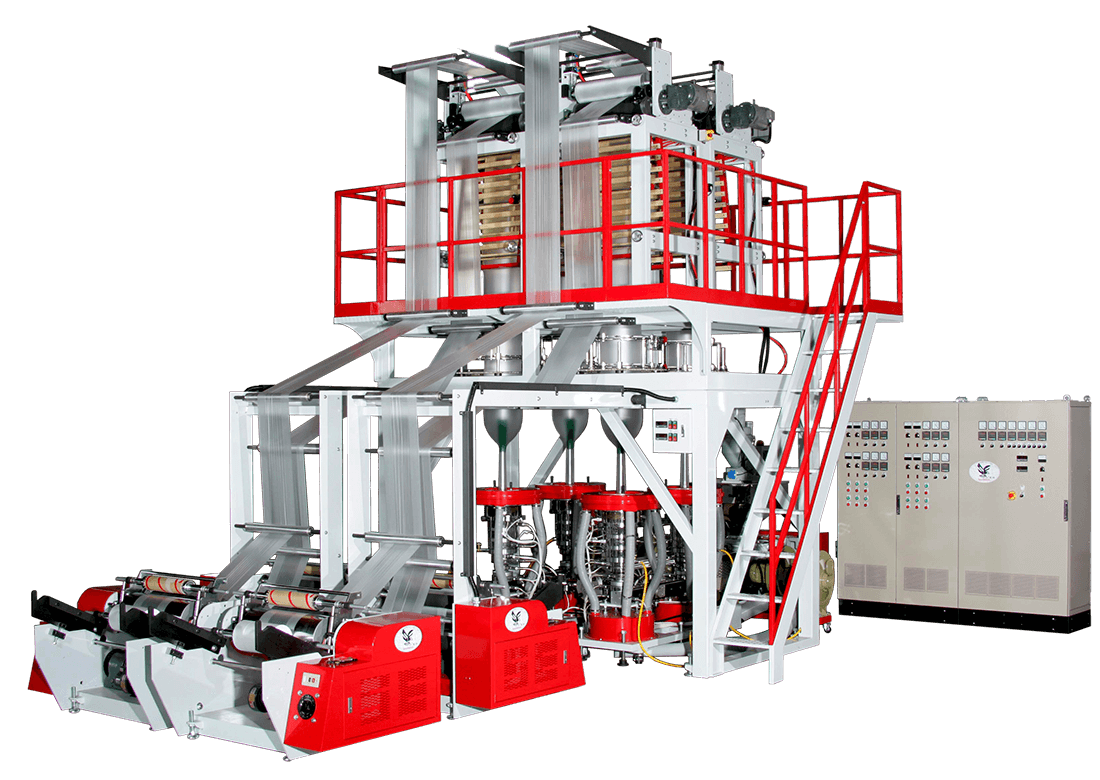

HDPE/LDPE Four Head Blown Film Machine
SE/HD/LD-75FD

  • It's economic for saving cost and reducing the cost of raw material.
  • It could be reduced the electricity loss more effective when equipping the inverter control.
  • Introduce the latest design idea.
  • It has economic purpose and can produce four different sizes film as four machines do at the same time.
  • The take-off unit is pneumatic type in pinch roller and operated by solenoid valve for an easy adjustment

MODEL SE/HD-FD
EXTRUDER SCREW DIA.
75 MM 65 MM
DRIVE MOTOR 60 HP x 6P 50 HP x 6P
INVERTER
DIE φ60 MM φ50 MM
TAKE-OFF UNIT ROLLER WIDTH
600 MM 500 MM
TAKE-OFF MOTOR
1 HP DC
WINDING UNIT SURFACE FRICTION TYPE
DRIVE MOTOR
0.3 KG-M TORQUE MOTOR
OPTION EQUIPMENT SURFACE TREATER
EPC DEVICE
WIDTH COTROLLER
AUTO LOADER
  • Auto-Loader
    Auto-Loader
  • Pressure Gauge
    Pressure Gauge
  • Rotary Device for Die
    Rotary Device for Die
  • EPC Device
    EPC Device
  • Edge Material Collector
    Edge Material Collector
  • Edge Material Crusher
    Edge Material Crusher
  • CORONA-Surface Treater
    CORONA-Surface Treater
  • Manual Screen Changer
    Manual Screen Changer
  • Thermal Sealing Device
    Thermal Sealing Device
