Mono Layer Line-D

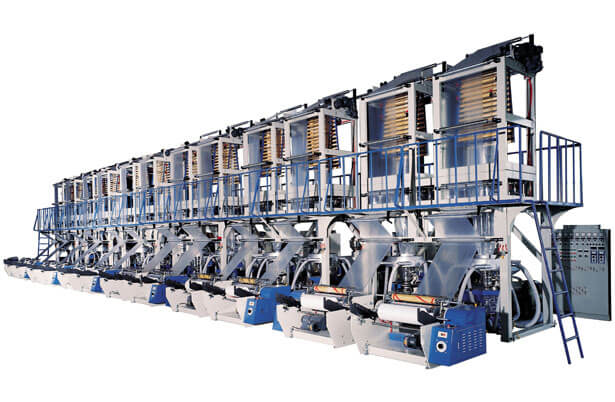

Mini Type Blown Film Machine
SE/HD-45MINI
- Introduce the latest design idea.
- Adopt the safety protection design for the whole device.
- It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
- Professional, Technology, Service & Quality are doing firstly for us.
- We are the professional manufacturer and experience supplier for blown film machine.
- For a even film thickness, it can choose the rotating die.
- A manual fast screen change can save the time of change screen and is a convenient equipment.
- It is equipped with an inverter to ensure synchronicity of take-off unit and winding unit. The take-off unit is pneumatic type in pinch roller and operated by solenoid valve for an easy adjustment.
- It has economic purpose, can produce at the same time two different sizes film as two machines do.
| Model | SE/HD-45D | SE/LD-45D | SE/HD-55D | SE/LD-55D |
| Applicable resins | hdpe | ld, lldpe | hdpe | ld, lldpe |
| Film width (mm) | 100-400 | 100-400 | 150-500 | 150-500 |
| Film thickness (mm) | 0.01 - 0.05 | 0.02 - 0.15 | 0.01 - 0.05 | 0.02 - 0.15 |
| Extrusion output (kg/hr max.) | 30-50 | 40-60 | 50-70 | 60-80 |
| Extruder | ||||
| Screw type | Mixing | |||
| Screw diameter (mm) | 45 | 45 | 55 | 55 |
| L:D ratio | 30:1 | 30:1 | 30:1 | 30:1 |
| Drive motor (hp) | 25 | 25 | 40 | 40 |
| Heating capacity (kW) | 6 | 6 | 9 | 9 |
| Barrel cooling system | Air cooling system | |||
| Temp. Control (zones) | 3 | 3 | 3 | 3 |
| Die | Double head type | |||
| Diameter (mm) | 40, 60 | 50, 100 | 50, 75 | 75, 150 |
| Air blower (hp) | 3x2 | 3x2 | 3x2 | 3x2 |
| Temp. Control | 2x2 | 2x2 | ||
| Take-off unit | Double line type | |||
| Take-off speed | 80 m/min max. | |||
| DC Drive motor (hp) | 1x2 | 1x2 | 1x2 | 1x2 |
| Width of roller (mm) | 500 | 500 | 610 | 610 |
| Winding unit | ||||
| Type | Surface friction | |||
| Drive motor torque | 0.3 m-kg x2 | 0.3 m-kg x2 | 0.3 m-kg x2 | 0.3 m-kg x2 |
| Floor dimensions (m) | 4.3 x 2.1 x 3.8 | 4.3 x 2.45 x 3.8 | 4.7 x 2.7 x 4.3 | 4.7 x 2.7 x 4.3 |
| Power required (kW) | 35 | 35 | 55 | 55 |
-
Auto-Loader -
Pressure Gauge -
Rotary Device for Die -
EPC Device -
Edge Material Collector -
Edge Material Crusher -
CORONA-Surface Treater -
Manual Screen Changer -
Thermal Sealing Device
