Mono Layer Line-B2B
HDPE/LDPE Blown Film Machine

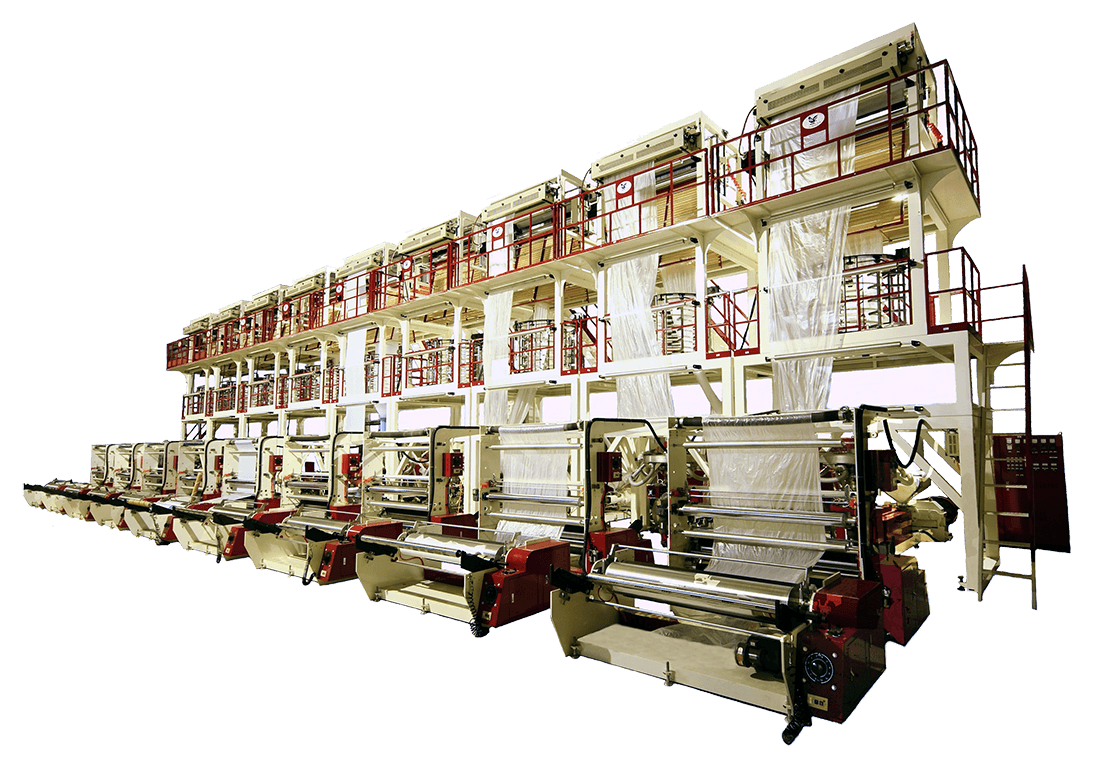

SE/HL-65 with back to back manual type winder
- Introduce the latest design idea.
- Adopt the safety protection design for the whole device.
- It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
- Professional, Technology,
- Service & Quality are doing firstly for us.
- We are the professional manufacturer and experience supplier for blown film machine.
- It can be designed and produced as per customer’s requirement.
- Extruder can be equipped with the long life filter which is optional.
- The accurate die mould and effective air ring cooling system to get good film quality.
- There are single and double in winding, it can be selected for slitting, or slitting with sealing device and is a multi-purpose equipment.
- Automatic design. It adopts air cylinder in both winding unit and take-off unit for easy operation and maintenance.
- We are the professional manufacturer and experience supplier for plastic bag making plant.
| Model | SE/HL-45 | SE/HL-55 | SE/HL-65 |
| Film width (mm) | 180 - 600 | 300 - 900 | 350 - 1200 |
| Film thickness (mm) | HD 0.01 - 0.05 LD 0.02 - 0.15 |
0.15 - 0.05 0.02 - 0.15 |
0.02 - 0.05 0.02 - 0.15 |
| Extrusion output (kg/hr) | 30-40 | 40-65 | 55-85 |
| Extruder | |||
| Screw type | Mixing type | ||
| Diameter (mm) | 45 | 55 | 65 |
| L:D ratio | 30:1 | 30:1 | 30:1 |
| Drive motor (hp) | 25 | 40 | 60 |
| Heat capacity (kW) | 7.2 | 10 | 12 |
| Cylinder cooling system | air cooling system | ||
| Temperature Control (zones) | 5 | 5 | 6 |
| Die | |||
| Lip diameter (mm) | HD 50 & 75 LD 150 | 75 & 100 200 | 100 & 120 350 |
| Air blower (hp) | 3 | 5 | 7 1/2 |
| Air ring (set) | 2 | 2 | 2 |
| Take-off unit (with elevator) | |||
| Take-off speed | 80 m/min max. | ||
| DC Drive motor (hp) | 1 | 1 | 2 |
| Roller width (mm) | 760 | 1000 | 1400 |
| Winding unit | |||
| Type | Surface friction type | ||
| Drive motor torque | 0.3 m-kg | 0.5 m-kg | 0.5 m-kg |
| Floor dimensions (m) | 4.9 x 2.2 x 4.0 | 5.1 x 2.4 x 4.3 | 5.4 x 2.7 x 6.0 |
| Machine weight (kg) | 2000 | 2500 | 3000 |
| Power required (kW) | 25 | 34 | 50 |
-
Auto-Loader -
Pressure Gauge -
Rotary Device for Die -
EPC Device -
Edge Material Collector -
Edge Material Crusher -
CORONA-Surface Treater -
Manual Screen Changer -
Thermal Sealing Device
