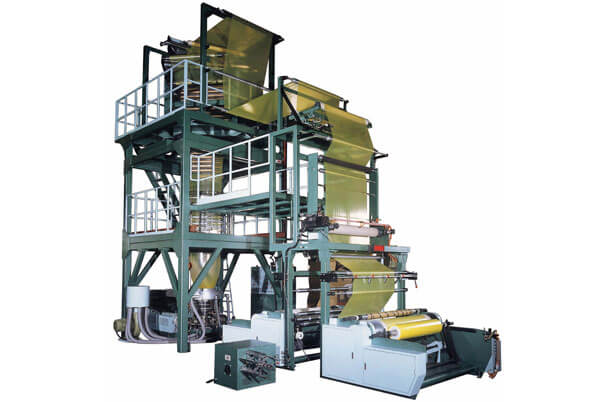

A/B Double Layer LD/LLD Blown Film Machine With Oscillating Take-Off Unit

A/B Double Layer LD/LLD Blown Film Machine With Oscillating Take-Off Unit
Product Name:A/B Double Layer LD/LLD Blown Film Machine With Oscillating Take-Off Unit
Model:SE/LD-55-55-1300/ 1600-OSC
Detail Specifications:

Introduce the latest design idea.

Adopt the safety protection design for the whole device.

It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.

Professional, Technology, Service & Quality are doing firstly for us.

We are the professional manufacturer and experience supplier for blown film machine.

Extruder can produce single or two layers as per requirement.

Both take-off unit and winding unit use inverter or servo motor to ensure synchonicity and stability.

Pinch roller of take-off unit is pneumatic type and operated by solenoid valve for a convenience adjustment.

Slitting device with several blades to get various film sizes.

Oscillating take-off unit is equipped with EPC equipment.

Model SE/LD-55CDX SE/LD-65CDX
Film width (mm) 1200 1500
Film thickness (mm) 0.02 - 0.15 0.02 - 0.15
Extrusion output (kg/hr) 140 200
Extruder
Diameter (mm) 55 65
L:D ratio 30/ 1 30/ 1
Drive motor (hp) 30 60
Heat capacity (kW) 65 101
Temperature Control (zones) 13 13
Die
SCREEN CHANGER LONG LIFE FILTER
Lip diameter (mm) 250/ 300 250/ 350
TAKE-UP UNIT
Drive motor (hp) 2 2
Roller width (mm) O210×1300 O210×1600
GUIDE MOTOR (hp) 2 2
Take-off unit (with elevator)
Drive motor (hp) 2 2
Roller width (mm) O165×1300 O165×1600
Winding unit
Floor dimensions (m) 11.3 x 3.4 x 7.1 12 x 3.8 x 9.1
Machine weight (kg) 7500 8500
Power required (kW) 120 160

Options:
CORONA-Surface Treater
EPC Device
Thermal Sealing Device
Edge Material Collector
Edge Material Crusher
Pressure Gauge
